AG

Description


The access panel is recommended for use in areas that require regular access.
The access panel facilitates the verification of ventilation and air conditioning works and installations.
The product is intended for mounting on a wall or ceiling with a thickness of 12.5 mm.

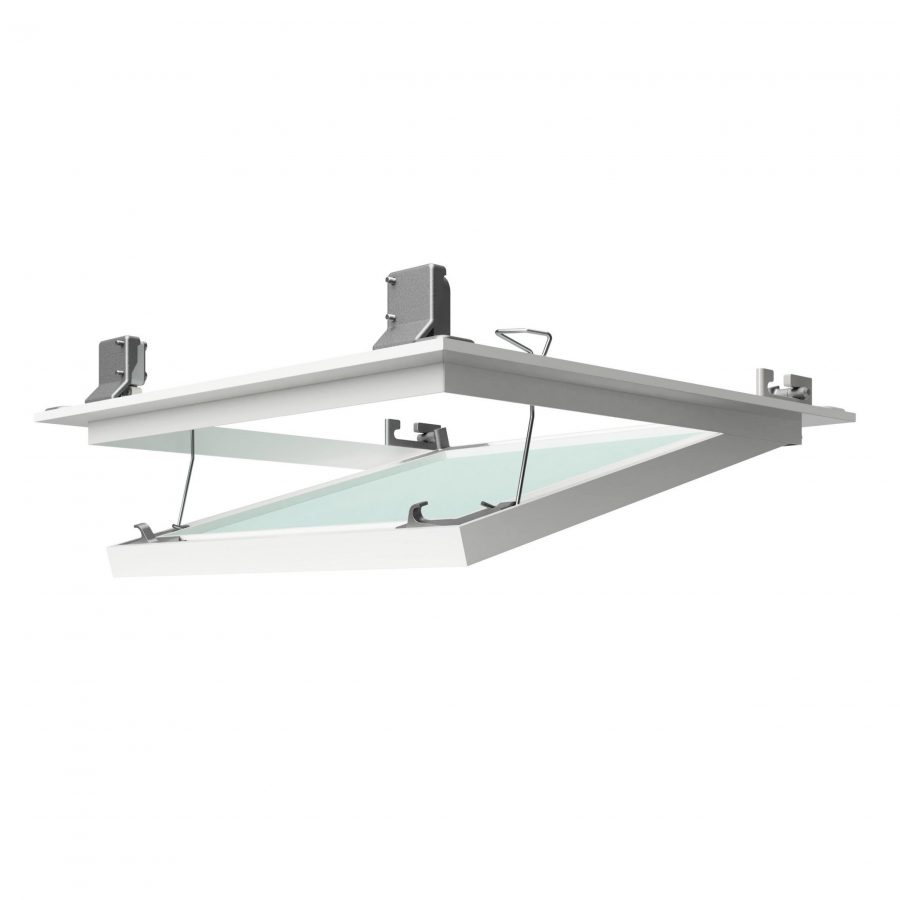

The product consists of a fixed outer frame, a mobile inner frame and a plasterboard front panel.

Opening/closing the hatch is easy and is done through a click system.
The center piece is removable which allows easy access.


Technical drawing




The outer frame is fixed to the ceiling/wall with screws for plasterboard.
The finishing (plaster, washable paint) of the mounted outer frame and the central part is done separately.
The cutout in the wall/ceiling must be 2 mm larger than the size of the hatch.
