Description
LENOX is an architectural linear diffuser, used to introduce or evacuate air.
The diffuser is an elegant and practical ventilation solution, and the design of the product determines a high level of induction rate.
LENOX integrates fully into the ceiling and is recommended for residential spaces, conference rooms, offices, classrooms, etc.
The diffuser is made with a linear slot, centrally positioned, with the following dimensional options: 25, 38, 51, 64 or 76 mm.
The diffuser blades are segmented to a maximum length of 635 mm and allow multiple positioning options (up, down, center…) thus obtaining the direction of the air jet in the desired direction.
The blades are sliding and easily adjustable from the front of the diffuser.
Technical drawing
LENOX - Linear
Perimeter configurations can be made by using corner sections (angle 90ᵒ and 135ᵒ).
Product specifications
1 - Masking cap
2 - Fixing screw
3 – LENOX diffuser
4 - Bracket (“U” type system)
5 – Plenum box (optional)
6 - Perforated damper (optional)
The values provided are for the grille-plenum assembly.

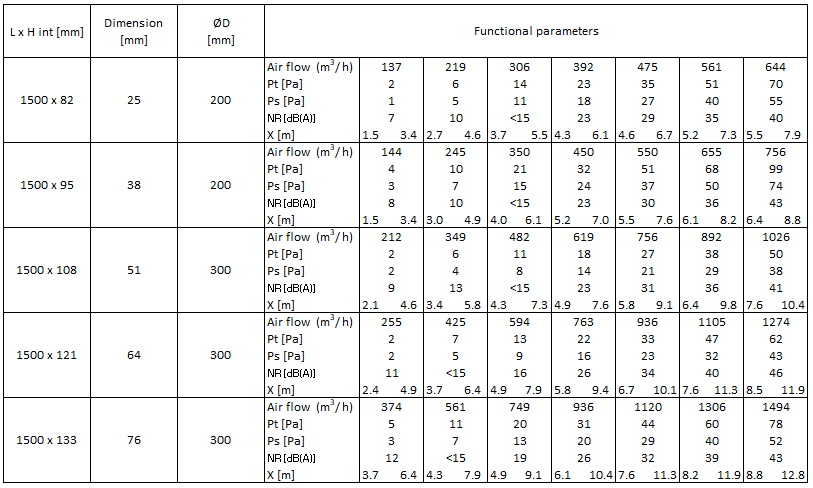

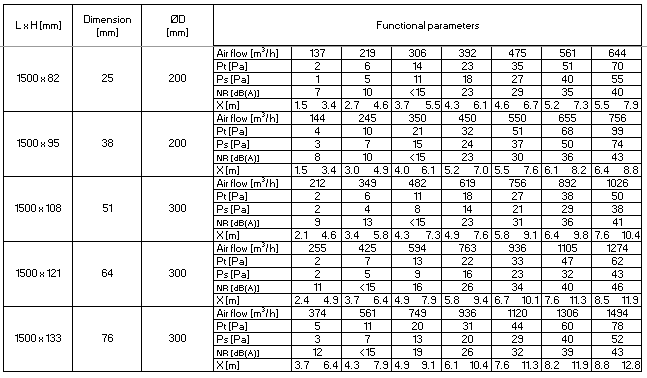

The legend
ØD [mm] - Diameter plenum
X [m] - The length of the air jet at a speed of 0.5 and 0.25 m/s
NR [dB (A)] - Noise level considering room attenuation of 10 dB
Pt [Pa] - Total pressure loss
Ps [Pa] - Static pressure loss
For more sizes see the Technical Data Sheet (bottom of the page).
The diffuser can be supplied with a plenum connecting to a circular duct with horizontal connection.
The plenum is provided with suspension elements (lugs) and bead roll on the spigot, for easy fixing of the flexible duct.
The plenum is delivered insulated or uninsulated.
Optionally, a perforated damper can be mounted on the plenum connection to balance the air flow.
Adapter (plenum box)
The adapter is made of Z140 galvanized steel sheet and is equipped with suspension lugs.
On request, the plenum can be insulated with 6 mm thick elastomeric rubber.
Perforated damper
The perforated damper is mounted on the adapter spigot and has the role of balancing the air flow.
Installation in continuous ceiling
Wall mounting and transition sections (no functional role)
The “T” profile is ordered together with the LENOX diffuser and is installed by the manufacturing department in the diffuser. The positioning of the “T” profile on the diffuser channel is done according to the thickness of the gypsum board (12.5 or 9.5 mm) . The gypsum board thickness is specified by the customer when ordering.
For more details see the Technical Data Sheet (bottom of the page).
