The linear slot grille is a 25 mm linear slot diffuser with adjustable blades and is used for air intake or exhaust.
The diffuser is recommended for installations with constant or variable airflow and intended for false ceiling mounting.

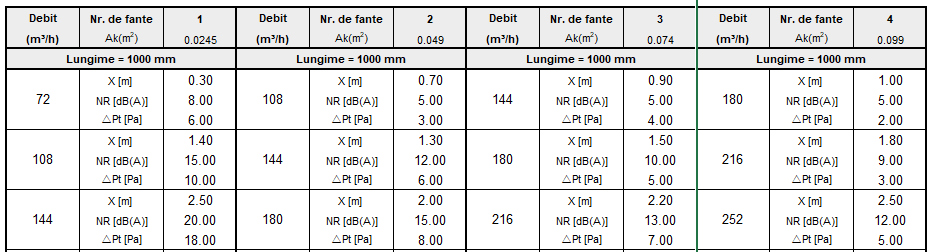

Note: Values are given for a room height of 2.7m.
The air jet length is given for horizontal discharge.
Ak [m²] - Free area
X [m] - Length of air jet at 0.25 m/s
NR [dB(A)] - Noise level for 8dB room attenuation
∆Pt [Pa] - Pressure loss
Veff [m/s] - Air velocity in the diffuser
For more information, please see the fact sheet at the bottom of this page
- The loudspeaker can be mounted in a continuous false ceiling or on the wall.
- The plenum diffuser is fixed to the plenum by means of "U" type mounting systems (bracket) positioned inside the plenum and screws
For more details, please refer to the fact sheet at the bottom of the page
